Maszyna do produkcji opon motocyklowych
>
Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press with 380V/50Hz Power and 220V/380V/Customized Voltage

Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press with 380V/50Hz Power and 220V/380V/Customized Voltage

Nazwa marki: Beishun
Numer modelu: 8"-18"
MOQ: 6 zestawów
Cena £: Negocjowalne
Szczegóły opakowania: 40 GP
Warunki płatności: Akredytywa, T/T, Western Union
Szczegółowe informacje
Miejsce pochodzenia:
Qingdao
Orzecznictwo:
ISO/CE
Moc:
380 V/50 Hz
Częstotliwość:
50 Hz/60 Hz
Tworzywo:
Stal
Typ ogrzewania:
Elektryczny lub pary
Kod Hs:
84778000
Tłok Qty:
1
Woltaż:
220V/380 V/dostosowany
Zakres ciśnienia:
0-200 MPa
Efektywna grubość:
1-4 mm
Sposób ogrzewania:
Elektryczny lub pary
Typ:
W pełni automatyczne
Zdolność produkcyjna:
100-120 sztuk/h
Szerokość splotu:
Maks. 160 mm
Ostrożnie:
1,5 roku
Pojemność:
100-120 opon na godzinę
Możliwość Supply:
80 zestawów
Podkreślić:

Electric Heating Motorcycle Tyre Curing Press

,

Hydraulic Tire Vulcanizing Press

,

Four-layer Motorcycle Tire Vulcanizing Machine

Opis produktu

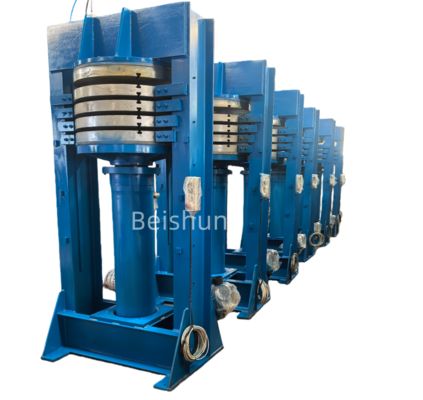

Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press Machine

This specialized equipment is designed for manufacturing and retreading motorcycle tires. The machine transforms soft, uncured rubber "green tires" into durable finished products through precise heat and pressure application in a mold - a process known as vulcanization.

Key Features Explained
  • Motorcycle Tyre Curing Press: Specifically designed for motorcycle tire sizes (8"-18"), using vulcanization to cross-link rubber polymers for durability.
  • Four-Layer Design: Four independent curing stations vertically stacked for space efficiency, allowing simultaneous processing of multiple tires.
  • Hydraulic System: Provides high, controllable clamping force to seal molds and maintain internal pressure during curing.
  • Electric Heating: Embedded heating elements offer precise temperature control (150-180°C) without steam boiler requirements.
  • Semi-Automatic Operation: Combines manual loading/unloading with automated curing cycles for efficiency and consistency.
Technical Specifications
Curing Tire Size 8"-18"
Green Tire Max Height 155-300
Mould Max Diameter Φ 750
Power 15-18KW
Max Distance Between Hou Plate 690
Bladder Pressure (kgf/cm²) 18-20
Workflow Process
  1. Preparation: Clean mold and prepare green tire
  2. Loading: Place tire in bottom mold half
  3. Cycle Start: Initiate automated curing process
  4. Curing: Hydraulic pressure, electric heating, and bladder inflation
  5. Cycle End: Pressure release and mold opening
  6. Unloading: Remove finished tire and trim excess
Product Advantages
  • High productivity with four-layer simultaneous processing
  • Space-efficient vertical design
  • Consistent quality through precise temperature and pressure control
  • Operator-friendly semi-automatic operation
  • Cost-effective balance of automation and manual operation
Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press with 380V/50Hz Power and 220V/380V/Customized Voltage 0 Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press with 380V/50Hz Power and 220V/380V/Customized Voltage 1
